When putting in 2 Stroke 40HP Outboard Motors, a lot of boat owners only think about the engine's power and steering. They forget about the throttle and shift control systems, which can cause problems with control. If the throttle and shift control systems are not installed correctly, it can be hard to change gears, the throttle may not respond right away, and there may even be serious gear meshing problems. Today, we'll learn how to put in the throttle and shift controls for an outboard motor.
What Are Outboard Motor Controls?
A control box (remote control unit), a throttle cable (which controls engine speed), a shift cable (which controls gear selection), and a wiring harness (which is used for ignition and safety switches) are all part of an outboard motor control device. Side-mounted, top-mounted, and embedded control devices are all common forms of control systems. Control devices that are put on the side panels are good for small boats; control devices that are mounted on the console are good for center-dashboard boats; and control devices that are built into the dashboard look clean and straightforward.
Why Proper Installation Matters?
It is very important to install the outboard motor control unit correctly. If you don't install it correctly, it could:
① Hard to change gears.
② The engine not getting up to full speed.
③ Gear slipping or rubbing against each other.
④ Safety risks when docking or moving about.
It is important to install correctly:
① Throttle response is smooth.
② Exact gear engagement
③ Safe and dependable functioning.
Step By Step Installation Guide
You will need various tools and materials before you can install it. Some of the tools you need are an electric drill and drill bits, screwdrivers, a set of wrenches and socket wrenches, a measuring tape, a hole saw, and more. The materials are the control box (throttle and shift), the throttle and shift cables, marine sealant, and cable ties and clips. Here are the right steps to take for installation:
1. Pick A Good Place To Control:
First, pick a place that is good for the boat owner's work, easy to get to, and pleasant. Most yacht owners put the control panel adjacent to the bridge or control console.

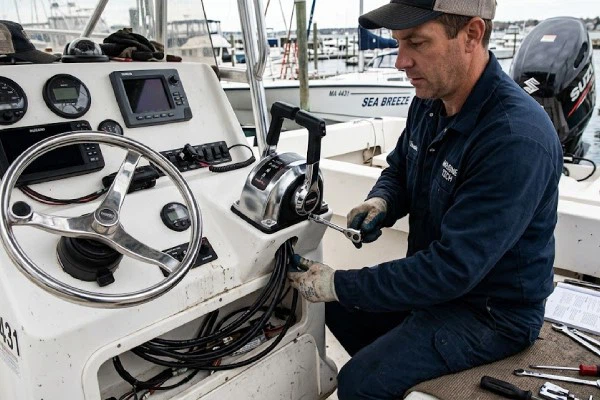

2. Put In The Control Box:
Put marks on the mounting holes, start drilling guide holes, and use bolts to hold the control box in place. Don't forget to put marine sealant over the holes to keep water out.
3. Wiring:
Run the throttle and shift cables from the control box to the outboard engine. The control is smoother when the cable path is smoother. Don't make harsh turns; make the curves smooth and mild. Don't forget to use clips to hold the cables in place at the end.
4. Connecting Cables To The Control Box:
Inside the control box, connect the shift cable to the shift mechanism and the throttle cable to the throttle lever. Make sure the connections are tight, straight, and free of slack.
5. Connecting Cables To The Boat Motor:
On the engine side, be very careful when connecting the throttle cable to the throttle linkage and the shift cable to the shift lever.
6. Setting The Cable Tension:
Make sure the neutral position is right first. Check sure the throttle is all the way open and that the shift travel is normal. If you need to, change the length of the throttle cord.
7. Connecting The Electrical Wire:
Connect the wiring for the ignition switch and put in the safety rope, making sure that all of the connections are tight.
8. Testing The System:
Before you use the boat, put it in drive, neutral, and reverse. Make sure the throttle responds quickly and smoothly so that the machine works well. Always test on land first, and then in water.
Things To Stay Away From:
❌ Using the wrong length of cable.
❌ Too much bending in the cable route.
❌ Connections that are loose or not lined up correctly.
❌ Not doing the right steps for adjustment.
❌ Not paying attention to putting in safety switches.
Small Tips:
① Pick cables that are marine-grade and of good quality.
② Keep the cables thoroughly oiled.
③ Quickly change out worn cables.
④ After installation, check all connections carefully.
⑤ Check for rust often.
Conclusion
It appears hard, but once you learn the tricks, it's easy. The most important thing is to be exact and pay attention to the details. Don't forget the order: Make sure the cables are routed smoothly first, then use high-quality parts and make sure they are set up correctly. You won't have to worry about things not working smoothly this way. Please get in touch with KLS Company for more information about 2 Stroke 40HP Outboard Motors:
• +8615094051894
• Room 1705, Yihe Blue Diamond, No. 154, West Section of Second Ring South Road, Yanta District, Xi'an City
FAQ
Q1: Can I do the throttle and shift control installation myself?
A1: Yes, you can do it yourself if you have the right tools and know-how.
Q2: How do I know the length of cable to get?
A2: Find the right cable length by measuring the distance from the control box to the outboard motor.
Q3: Why is it hard to change gears?
A3: This could happen if a cable is bent too tightly, if it isn't lubricated well, or if it isn't set up correctly, which makes it hard to shift.
Q4: Do the cables for the throttle and shift controls need to be separate?
A4: Yes, most systems need two distinct wires to work effectively.
Q5: How often do I need to take care of the cables?
A5: Check on them often. If you see that the cables are stiff, corroded, or worn, you should replace them right away.
