Yamaha 150HP Jet Outboard

Yamaha 150HP Jet Outboard

Product Name: Yamaha 150HP Jet Outboard
Engine Type: 4 Stroke Outboard Motor
Rated Power: 150HP
Product Weight: 225KG
Alternator: 35A
Full Throttle RPM Range: 5000 ~ 6000RPM
Product Material: Marine Aluminum Alloy
Packaging: Standard Brand Packing & Neutral Packing & Customized Packing
Delivery: Express & Air Freight & Sea Freight
Warranty: One Year 12 Months
Support: OEM & ODM Services
Support: Color & Logo Customization
Send Inquiry
Description
Technical Parameters

What Is Yamaha 150HP Jet Outboard?



Yamaha 150HP Jet Outboard is the maximum horsepower in the jet drive series. The 150hp jet drive outboard motor features a four-stroke internal combustion engine, boasting a powerful 150hp output and a propellerless design, delivering excellent performance in shallow waters. If you are a boat owner who frequently operates in extremely shallow waters, beaches, riverbeds, or rocky areas, choosing a jet drive marine motor is the wisest choice.



Technical Specifications



Product Name Jet Outboard Motor Product Type 4 Stroke Outboard Motor
Rated Power 150HP Engine Type 16-Valve, DOHC, In-Line 4
Dry Weight 225KG Full Throttle RPM Range 5000 ~ 6000RPM
Alternator 35A Fuel Induction System EFI
Product Quality 100% Tested Delivery Express & Air Freight & Sea Freight
Product Warranty One Year 12 Months We Support OEM & ODM Services



Key Features Of 150HP Jet Outboard



Yamaha 150HP Jet Outboard is a high-performance marine propulsion system that uses a jet-pump propulsion arrangement to move the boat without an exposed propeller. It has a consistent and responsive power output, which makes it great for shallow seas, complicated canals, and places where safety is most important. This type has great propulsion efficiency and manoeuvrability even at high speeds since it has a high-efficiency combustion engine and a carefully designed water flow channel. With its powerful 150HP output and efficient jet propulsion mechanism, it can carry heavy loads and speed up quickly. It works well in both freshwater and saltwater because it is small and resistant to corrosion. Also, doing rid of the standard propeller design dramatically lowers the chance of becoming tangled up or coming into contact with something dangerous, which makes operations much safer. When using the machine, it's important to keep the entrance clean so that dirt doesn't clog it. To make sure the equipment works well for a long time, it is best to do anti-corrosion treatment and system flushing maintenance while it is in storage.



Benefits



1. Better Performance In Shallow Water:

The jet drive outboard motor lets you work in very shallow water without worrying about damaging the propeller. This makes it perfect for rivers, sandbanks, and places with a lot of debris.

2. Design For Better Safety:

The marine engine is much safer for rescue operations and passenger transport because it doesn't have an exposed propeller, which lowers the risk of injury to people and marine life.

3. Instant And Strong Acceleration:

This jet drive outboard has a powerful 150HP output, which means it responds quickly to the throttle and accelerates quickly, even when it's carrying a lot of weight.

4. Great At Moving Around:

The jet boat motor gives you fine control and quick steering, making it easier to get around in tight spaces and complicated places.

5. Low Chance Of Getting Caught Up:

The jet boat engine, on the other hand, lowers the possibility of weeds, ropes, or debris being caught in the engine, which keeps it running smoothly.

6. Strong Enough To Last In Tough Situations:

It works well in both fresh and salt water because it is made of materials that don't rust and has strong internal parts.

7. Less Maintenance In Tough Waters:

The engine is less likely to be damaged in waters with a lot of debris since it has fewer moving parts that are exposed. This means less maintenance and less time spent on repairs.



150HP Jet Drive Outboard Suitable For



1. Fishing Boats For Shallow Water:

This engine is great for fishing in rivers and shallow coastal locations because it lets boats move smoothly in water that is not too deep, has sandbanks, and has submerged objects without damaging the propellers.

2. Aluminium Boats:

The jet drive system is often used on boats with aluminium hulls. It delivers strong propulsion while keeping the boat balanced and under control, even in fast-moving rivers.

3. Boats For Rescue And Patrol:

Great for search & rescue, emergency response, and police work. The design without a propeller makes it safer for both the persons who use it and the people in the water.

4. Boats For Transporting On Rivers:

Good for moving people and things on interior rivers, especially in places where the water level changes and there is a lot of debris.

5. Inflatable Boats (RIBs):

Works well with rigid inflatable boats, giving them a lot of thrust and making them safe to use. This makes it great for tourist, patrol, and quick-response missions.

6. Tourism And Adventure Boats:

Commonly employed in jet boating and adventure tourism, it provides high-speed performance and great manoeuvrability for a fun and safe experience.



Other Horsepower



Jet Drive Outboard Motor

            40HP                                               60HP                                       90HP                                         115HP                                         150HP



Unlike propeller outboard motors, although the Yamaha 150HP Jet Drive Outboard has a rated power of 150 horsepower, due to inherent losses, its actual output is only 105 horsepower. Despite this power loss, it boasts excellent low-speed torque and powerful instantaneous jet thrust.

Outboard motors with propellers are unsuitable for shallow waters, rocky rivers, or rivers with rapid, white water. These waters are inherently dangerous, as the propeller blades could be damaged by rocks or other obstacles, making the damage outweigh the benefits. Jet drive outboard motors, without propellers, offer greater freedom of movement and can easily navigate shallow waters. Of course, we offer five power options: 40hp, 60hp, 90hp, 115hp, or 150hp.



Different HP Jet Drive Engines & Different Parameters



Item 40HP 60HP 90HP 115HP 150HP
Engine SOHC, In-Line 3 SOHC, In-Line 4 SOHC, In-Line 4 16-Valve, DOHC, In-Line 4 16-Valve, DOHC, In-Line 4
Dry Weight 103KG 116KG 161KG 171KG 225KG
Full Throttle RPM Range 5000 ~ 6000 RPM 5000 ~ 6000 RPM 5000 ~ 6000 RPM 5000 ~ 6300 RPM 5000 ~ 6000 RPM
Alternator 16A 17A 35A 35A 35A
Fuel Induction System EFI EFI EFI EFI EFI



Packaging



Packaging

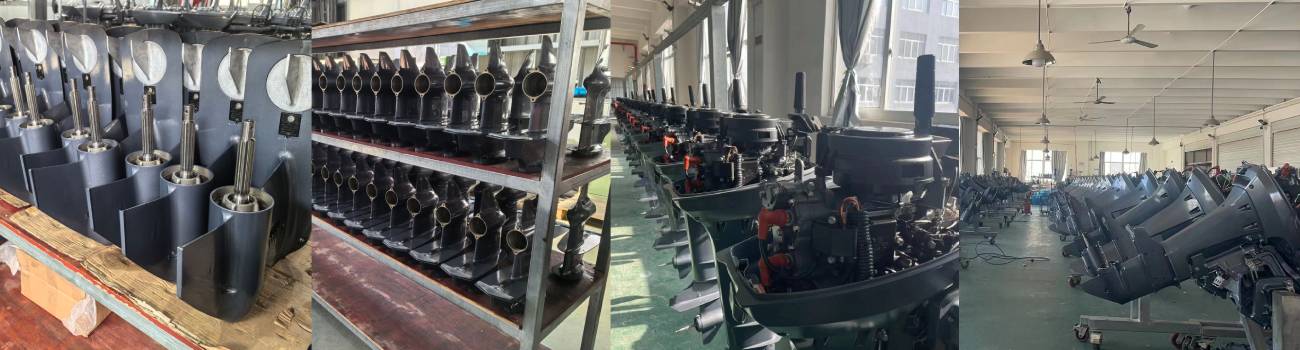

Factory
