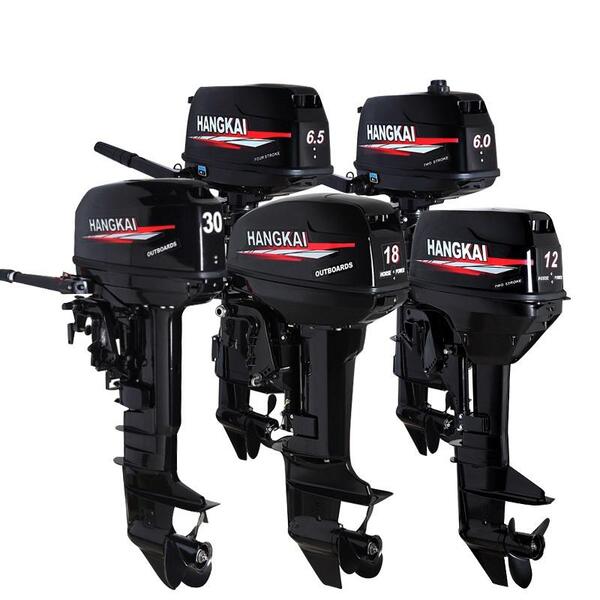

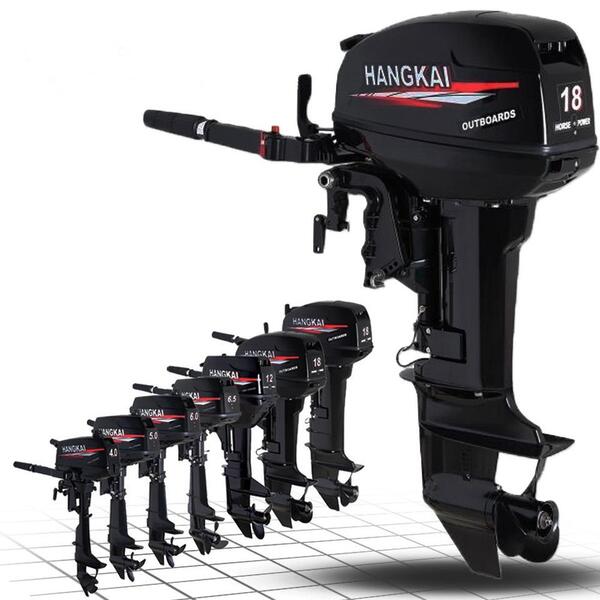

Hangkai 2 Stroke Outboard

Hangkai 2 Stroke Outboard

Product Name: Hangkai 2 Stroke Outboard
Engine Type: 2 Stroke
Horsepower: 6HP & 12HP & 18HP & 30HP & 40HP
Fuel Type: Gasoline
Product Material: Marine Aluminum Alloy
Packaging: Standard Brand Packing & Neutral Packing & Customized Packing
Delivery: Express & Air Freight & Sea Freight
Warranty: One Year 12 Months
Support: OEM & ODM Services
Support: Color & Logo Customization
Send Inquiry
Description
Technical Parameters

What Is Hangkai 2 Stroke Outboard?



Hangkai 2 Stroke Outboard is the perfect power partner for your boat. Hangkai outboard motors employ SKF bearings and PPG automotive paint to make sure that every user has plenty of power and peace of mind. When you buy one of our outboard engine motors, you not only get a high-quality equipment, but also our skilled technical team and excellent after-sales service.



Technical Specifications



Product Name 2 Stroke Outboard
Product Type 2 Stroke Boat Motor
Fuel Type Gasoline
Product Quality 100% Tested

Delivery

Express & Air Freight & Sea Freight

Product Warranty One Year 12 Months
We Support OEM & ODM Services



Are you interested in our outboards? Just Leave A Message on this page or Contact Us Directly to get more professional support!



Short Shaft Outboard & Long Shaft Outboard



• Short shaft outboard:

381MM in length, suitable for boats with a stern plate height of 44 cm or less.



• Long shaft outboard:

508MM in length, suitable for boats with a stern plate height between 45 cm and 55 cm.



Short Shaft Outboard Motor More Parameters

Model T6S T12S T18S T30S
Horsepower 6HP 12HP 18HP 30HP
Max Output 4.4KW 8.8KW 13.2KW 22KW
Displacement 102CC 169CC 246CC 496CC
Net Weight 25.9KG 26KG 38.6KG 52.0KG
Gross Weight 26.7KG 34.2KG 49.5KG 53.5KG
Cylinder 1 2 2 2
Fuel Tank Within 2.7L External 24L External 24L External 24L
Transom Plate 44CM 44CM 44CM 40CM
Cooling System Water Cooling Water Cooling Water Cooling Water Cooling



Long Shaft Outboard Motor More Parameters

Model T12L T18L T30L T40L
Horsepower 12HP 18HP 30HP 40HP
Max Output 8.8KW 13.2KW 22KW 29.4KW
Displacement 169CC 246CC 496CC 703CC
Net Weight 28KG 41.6KG 56KG 75.5KG
Gross Weight 35KG 53.5KG 57.5KG 76KG
Cylinder 2 2 2 2
Fuel Tank External 24L External 24L External 24L External 24L
Transom Plate 54CM 54CM 51CM 51CM
Cooling System Water Cooling Water Cooling Water Cooling Water Cooling



Product Accessories



① Instruction Manual;

② Preparation Pot;

③ Function Funnel;

④ Flame-Off Rope;

⑤ Water Pump Impeller;

⑥ Tool Kit;

⑦ Starting Pull Rope;



Key Features Of Hangkai 2 Stroke Boat Motor



① Propeller: Provides propulsion power.

② Vortex deflector: Reduces or eliminates vortices.

③ Hanging tilt adjustment pin: Adjusts sailing attitude.

④ Stern plate clamping bolts: Secures the outboard motor to the stern plate.

⑤ Control lever: Operates the throttle, accelerating or decelerating.

⑥ Start lever: Starts the engine.

⑦ Soundproof enclosure: Reduces or eliminates noise.



Benefits



1. Small Size For Maximum Ease Of Use:

Hangkai outboards are made to save space and be easy to use. Their small size makes it much easier to store, transfer, and set up, especially for people who don't have a lot of space or who move around a lot.

2. Quick Setup And Flexible Use:

These outboard engines may be installed and put to use quickly with little setup. This makes them great for short-term use, renting, or instances when quick deployment is critical, including short fishing trips or emergencies.

3. Easy To Use For People Of All Skill Levels:

Hangkai marine engines are designed to be simple to use, with easy-to-understand controls and handling. This makes it much easier to learn, so novices may use it with confidence while still serving the needs of more experienced users.

4. Small Boats Have An Advantage Because They Are Light:

Their lighter weight puts less stress on smaller transoms, which helps keep the boat more stable and balanced. This is especially crucial for inflatable boats, canoes, and other light boats since too much weight might affect how well they work.

5. How To Use Fuel Wisely For Short Trips:

Hangkai marine motors for people who don't need long-range or high-speed performance because they are cheap.

6. A Simpler Way To Take Care Of Things:

The simple mechanical design makes it easy to do routine maintenance and basic repairs. Users can do simple maintenance activities more easily, which means they don't have to rely on professional repair services as much.

7. Affordable Starting Point:

Hangkai boat engines are a cheap way to get into motorized boating. They are a good compromise between affordability and usefulness for people who are new to boating or just use it once in a while.



Hangkai 2 Stroke Boat Engine Suitable For



1. Fishing Boats That Are Easy To Move:

Hangkai outboards are perfect for tiny, portable fishing boats that are utilized in lakes, ponds, and rivers that don't move too quickly. They are great for fishermen who require a quick and fast power supply for short trips because they are straightforward to install and always start up.

2. Canoes And Small Rowboats That Can Be Turned Into Motorboats:

Hangkai engines are a simple solution for people who want to update their traditional paddle boats to add powered propulsion. Their lightweight construction makes the boat easier to steer and greatly increases its range and efficiency.

3. Inflatable Dinghies:

Hangkai outboard motors are great for tiny inflatable dinghies because they provide enough thrust for short trips down the coast, docking, and short-distance hauling. Because they are little, they are easy to put on and take off when you need to.

4. Boats For Aquaculture And Farming:

Hangkai outboard engines are very common on tiny work boats that are employed on fish farms, shrimp ponds, and other types of water-based farms. They work well at modest speeds, which makes daily duties like feeding, inspecting, and maintaining them easier.

5. Backwater And Narrow Channel Boats:

Hangkai marine motors are easy to steer and manage when working in tiny canals, swamps, or backwater areas. Their quick handling makes it easy for operators to move around in tight locations.

6. Lightweight Boats For Fun:

Hangkai marine engines are a simple and cheap way to power small boats for fun, including short cruises or family trips on calm waters. They don't add any further complexity.



Packaging



Packaging

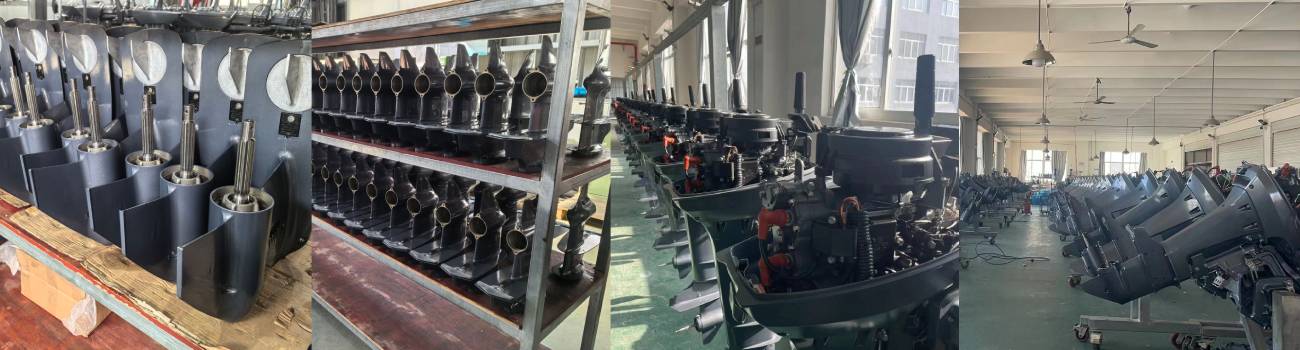

Factory



Factory



Certificate



Certificate
