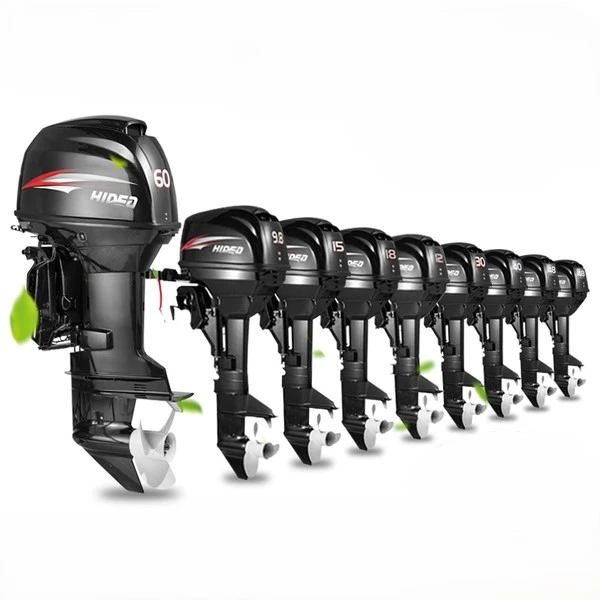

Hidea Boat Engine

Hidea Boat Engine

Product Name: Hidea Boat Engine
Engine Type: 2 Stroke & 4 Stroke
Fuel Type: Gasoline
Product Material: Marine Aluminum Alloy
Packaging: Standard Brand Packing & Neutral Packing & Customized Packing
Delivery: Express & Air Freight & Sea Freight
Warranty: One Year 12 Months
Support: OEM & ODM Services
Support: Color & Logo Customization
Send Inquiry
Description
Technical Parameters

What Is Hidea Boat Engine?



There are both two-stroke and four-stroke types of Hidea Boat Engine. Hidea boat motors are from China and are not only affordable, but they are also strong and long-lasting. Not only Chinese customers use them, but also customers from other countries.



Technical Specifications



Product Name Outboard Motor Boat Engine
Product Type 2 Stroke Boat Engine & 4 Stroke Boat Engine
Fuel Type Gasoline
Product Quality 100% Tested

Delivery

Express & Air Freight & Sea Freight

Product Warranty One Year 12 Months
We Support OEM & ODM Services



Are you interested in our outboards? Just Leave A Message on this page or Contact Us Directly to get more professional support!



Horsepower Selection



• Two-Stroke Hidea Outboard Engine:

3HP & 4HP & 5HP & 9.8HP & 15HP & 18HP & 20HP & 30HP & 40HP & 60HP;



• Four-Stroke Hidea Outboard Engine:

2.5HP & 5HP & 6HP & 9.9HP & 15HP & 20HP;



Two Stroke Boat Engine

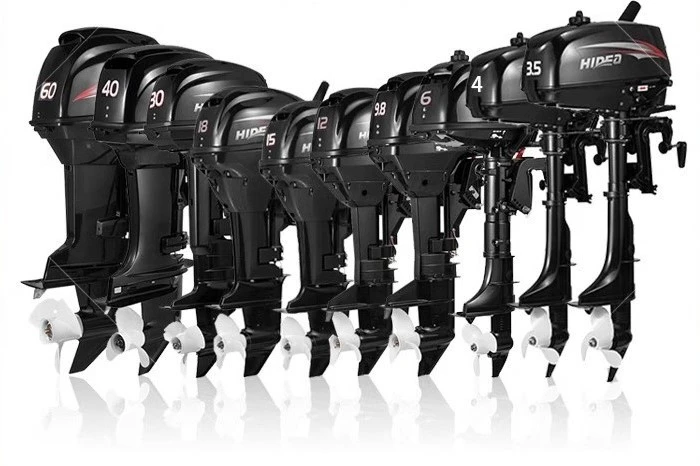

Two Stroke Outboard Motor



Horsepower 3HP 4HP 5HP 9.8HP 15HP
Power 2.2KW 2.94KW 3.68KW 7.2KW 11KW
Displacement 64CC 79.5CC 102CC 169CC 246CC
Dry Weight 11.8KG 15-16KG 21-23KG 26-27KG 38.8-40KG
Cooling System Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Starting System Manual Starter Manual Starter Manual Starter Manual Starter Manual Starter
Fuel Tank Capacity Built-In 1.2L Built-In 1.4L Built-In 2.5L External 12L External 24L
Standard Fuel Consumption 1.2L/H 1.8L/H 2.8L/H 3.6L/H 7L/H
Horsepower 18HP 20HP 30HP 40HP 60HP
Power 13.2KW 14.7KW 22.1KW 29.4KW 44.1KW
Displacement 246CC 326CC 496CC 703CC 849CC
Dry Weight 38-41KG 44.4-47.5KG 52.5-54.5KG 76-78.2KG 104KG
Cooling System Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Starting System Manual Starter Manual Starter/Electric Starter Manual Starter/Electric Starter Manual Starter/Electric Starter Manual Starter
Fuel Tank Capacity External 24L External 24L External 24L External 24L External 24L
Standard Fuel Consumption 7.3L/H 9.2L/H 12L/H 16L/H 22L/H



Four Stroke Boat Engine

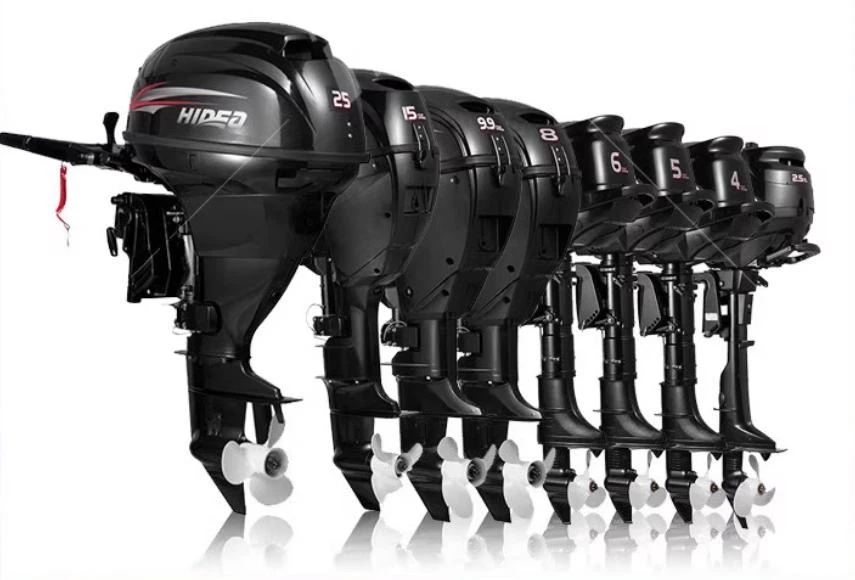

Four Stroke Outboard Engine Motor



Horsepower F2.5 F5 F6 F9.9 F15 BF20
Power 1.84KW 3.68KW 4.41KW 7.2KW 11KW 14.7KW
Displacement 72CC 112CC 139CC 212CC 345CC 362CC
Dry Weight 17-17.5KG 22-24KG 27-28KG 41.5-42KG 58-60KG 51-53KG
Cooling System Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Starting System Manual Starter Manual Starter Manual Starter Manual Starter/Electric Starter Manual Starter/Electric Starter Manual Starter/Electric Starter
Fuel Tank Capacity Built-In 0.9L Built-In 1.1L Built-In 1.1L External 12L External 12L External 12L
Standard Fuel Consumption 1.2L/H 1.7L/H 2.0L/H 3.4L/H 4.6L/H 5.6L/H



Long Shaft Boat Engine Vs Short Shaft Boat Engine

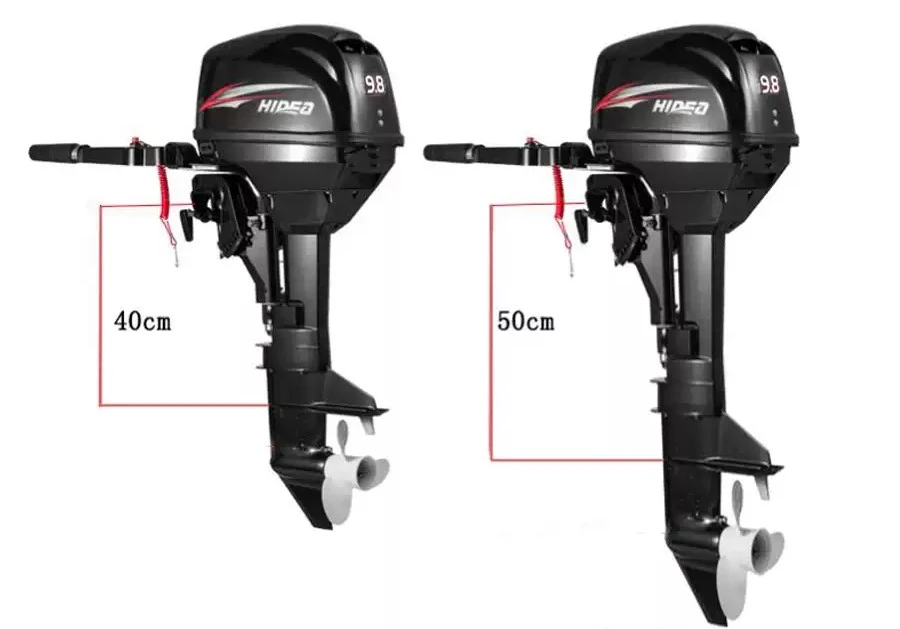

Short Shaft And Long Shaft



① 40CM is a short shaft, suitable for inflatable boats, fishing boats, kayaks, etc. (sternplate height 38-43cm).

② 50CM is a long shaft, suitable for fiberglass boats, iron boats, wooden boats, etc. (sternplate height 46-55cm).



Key Features Of Hidea Boat Motor



① Utilizing automotive paint production lines and technology, ensuring robustness, durability, attractive appearance, corrosion resistance, and long service life.

② Six layers of paint, thickness ≥100μm.

③ Made with BASF plastic, robust and durable.

④ Uses high-quality spark plugs, superior ignition performance, and extended service life.

⑤ Strong metallic texture.

⑥ The propeller is made of high-strength aluminum alloy, with high hardness, rust and corrosion resistance.



Benefits



1. Performance that is stable and reliable:

Hidea outboards are designed to give boats a steady amount of power, so they can run smoothly in both calm and somewhat rough waters. This steadiness makes it easier to steer and gives you more confidence while sailing, whether you're doing it for fun or for work.

2. A solution that saves money:

One of the best things about Hidea outboard engines is that they are a great deal. They work well and are reasonably priced, making them a great choice for people who want to receive the best value for their money.

3. Fuel economy and low-cost operation:

Hidea outboard motors are made to be efficient, so they use less gasoline while still performing well. This makes them great for people who spend a lot of time on the water and wish to keep prices low.

4. Simple to care for and service:

Hidea boat motors are easy to fix and keep up since they have a simple mechanical construction and parts that are easy to get to. This cuts down on downtime and makes regular maintenance easier, especially in places where technical assistance may not be readily available.

5. Design that is light and easy to carry:

A lot of Hidea boat engines are small and light, which makes them easy to install, move, and store. This is especially helpful for people who own tiny boats and often relocate their motors from one boat to another.



Hidea Outboard Engine Suitable For



1. Small And Medium-sized Fishing Boats:

Hidea outboards are a good fit for fishing boats that stay close to shore and in freshwater. Their steady production and reliable performance make it easy to cruise smoothly and steer precisely, which helps fishermen work efficiently in lakes, rivers, and coastal waterways.

2. Aluminium Boats:

Hidea outboard engines work well with lightweight aluminium boats because they are easy to steer and move quickly. This combination works especially well on shallow rivers and inland waterways where speed and control are important.

3. Fibreglass Boats:
Hidea outboard motors make boating with fibreglass hulls comfortable and stable. Their balanced power delivery and less vibration make them good for family fun, sailing, and other activities.
4. Inflatable Boats And Ribs:

Hidea outboard engines are popular for use on inflatable boats and rigid inflatable boats since they are small and provide reliable thrust. They are great for patrolling, short-distance travel, and helping with water sports.
5. Utility And Work Boats:

Hidea boat motors work well and are cheap to run in aquaculture, inspections, and small transport operations. They are great for everyday, high-frequency use because they are durable and easy to care for.
6. Boats For Tourism And Leisure:

Hidea marine motors work smoothly and quietly, which makes passengers more comfortable while still using fuel efficiently, which is vital for lengthy running hours.


Packaging



Packaging

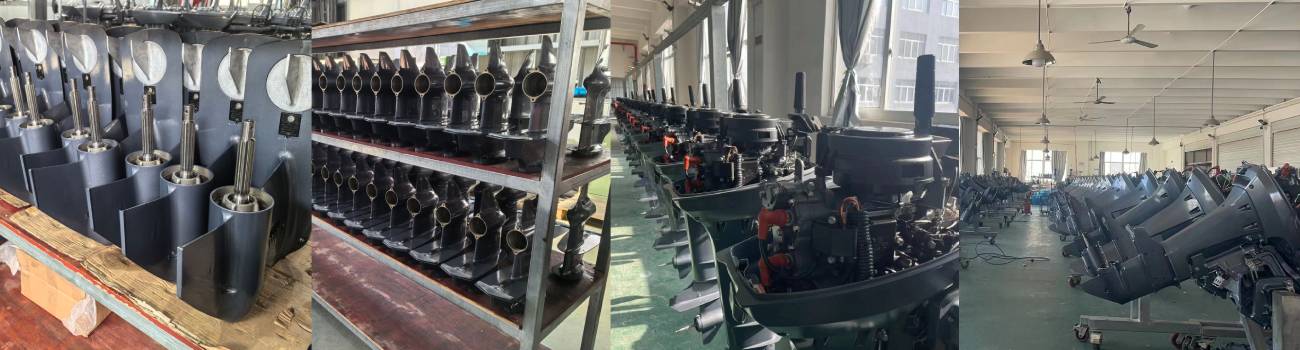

Factory



Factory



Certificate



Certificate
